Function:
• Suicide Resistant (SR) Product designed to reduce the ligature risk associated with
conventional vent grilles

Application:
• Psychiatric patient rooms, washrooms & corridors
• Correctional environments

Features & Benefits:
• Constructed of heavy gauge steel for vandal resistance
• Impact & and contraband resistant

• Perforated staggered hole design resists looping

Technical Data:
• Material: 12GA CRS (aluminum & stainless steel also available)
• Finish: Two Part Polyurethane White
• Hole Pattern: 3/16" round holes on 9/32" staggered centers or 1/8" round holes on 3/16" staggered centers
• Flange Width: 1" or 1.5"
• Fasteners: Torx security buttonhead sheet metal screws

Ordering & Specifying Example:

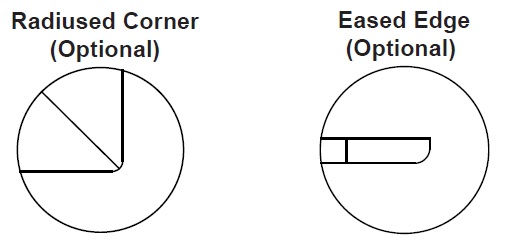

814S99-CCP-M-3-6: CRS 12GA x Two Part Polyethylene White Finish, Matched with 1/2" offset, 3/16" Holes on 9/32" Staggered Centers, 1" Flange, Square Corners and Edges; Screw holes in flange 10" max. oc, #10 x 1-1/2" Torx Security BHSM Screws
